Single-use intracardiac echocardiography catheter_TINGSN Sonic Eyes 10

Finer, softer

Suitable for finer blood For
Delicate Vessels & Smaller Hearts.

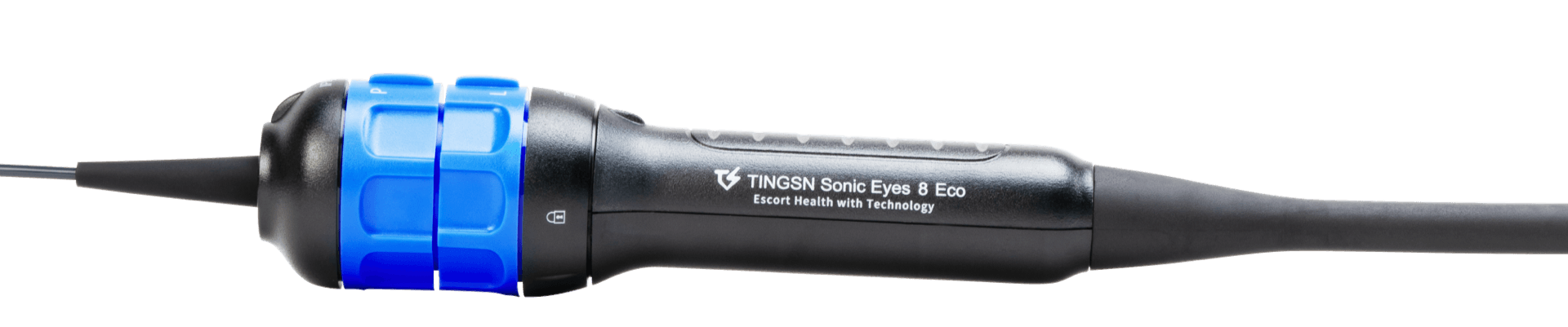

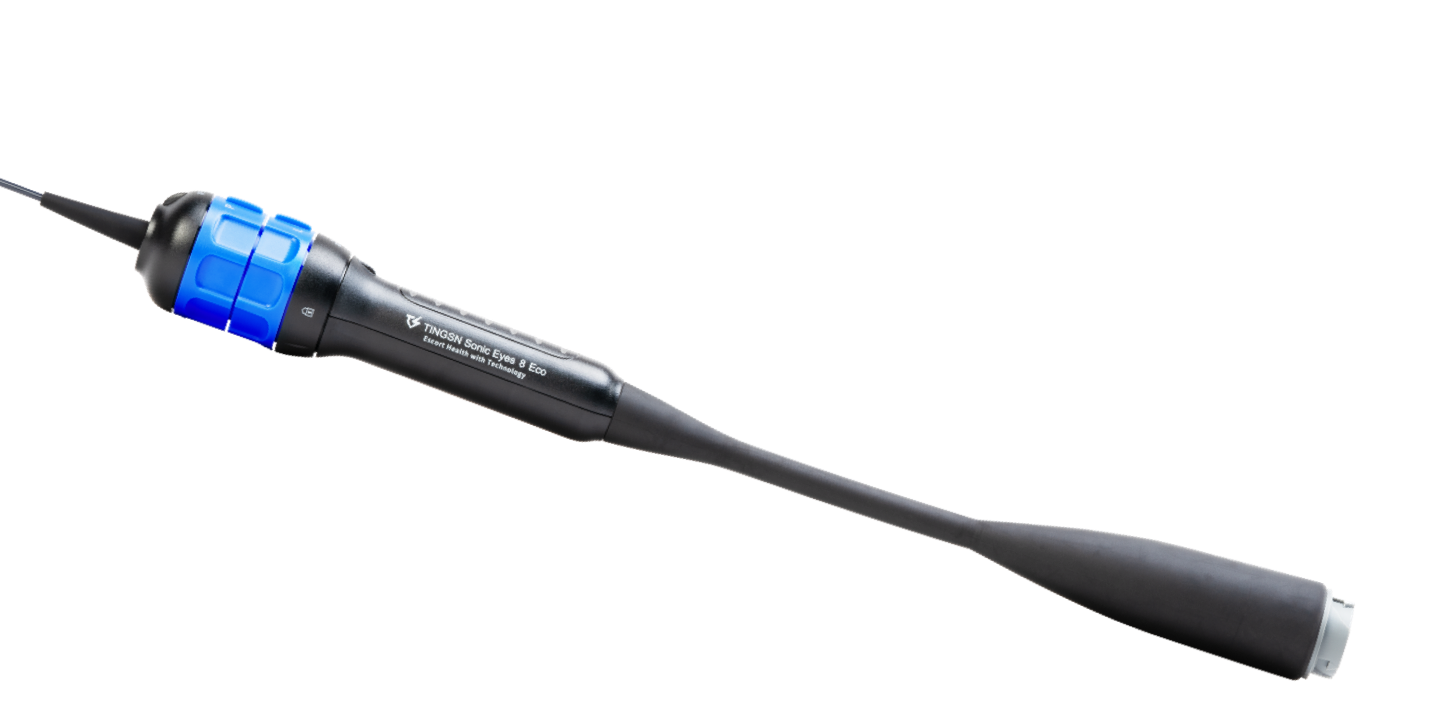

Disposable Intracardiac Echocardiography Catheter
TINGSN Sonic Eyes 8 Eco
NMPA Domestic 202533060929

64Array elements

Equipped with an independently developed
and manufactured 64-element phased
array transducer

Catheter diameter: 8F

90cm

Effective catheter length: 90 cm

Green Guardian

Enabling Green Electrophysiology, Substantially Reducing X-Ray Radiation Exposure, and Replacing General Anesthesia with Local Anesthesia

Intuitive Control & Exceptional Responsiveness

Engineered to deliver a unidirectional maximum bending angle of more than 210°, the catheter facilitates smooth, reliable access to the right ventricular outflow tract.

4-Directional Articulation

Flexible Bending in Anterior, Posterior, Left and Right Directions Enables Easy Observation of Every Cardiac Chamber

IPX8 Waterproof Rating

The catheter body features an IPX8 waterproof rating, ensuring reliable performance even in fully submerged conditions.

Multi-Band Frequency Switching

Multi-Band Switching Capability Covering 4.5MHz to 9.5 MHz

Angle Locking

Once locked, the catheter maintains a stable angle for continuous, long-term monitoring at the precise targeted position

Product application scope

Recommend Category

Suitable for

Procedure/Operation Names

Atrial septal puncture
Atrial thrombus screening
Atrial septal defect closure
Complication monitoring during ablation
Left atrial appendage closure
Applications in cardiac intervention for pregnant patients
Atrial fibrillation catheter ablation
Closure of atrial septal defects, patent foramen ovale
Percutaneous septal ablation for obstructive hypertrophic cardiomyopathy
Ventricular arrhythmia catheter ablation originating from papillary muscles, moderator bands, outflow tract, and other specific sites

Recommend Category

Preferred Applications

Procedure/Operation Names

Myocardial biopsy
Pacemaker lead extraction
Transcatheter pulmonary valve implantation
Implantation of physiological pacing leads
Catheter ablation for ventricular arrhythmias in organic heart disease
Interventional treatments for structural heart disease such as pulmonary artery balloon dilation
Mitral valve (MitraClip), tricuspid valve, transcatheter aortic valve implantation (TAVI)
Catheter ablation for supraventricular tachycardias such as atrial premature beats, atrial tachycardia, atrial flutter, inappropriate sinus tachycardia

Note

[1] Recommended Category "Suitable for" refers to clear clinical benefits, widely used, should be prioritized.
Recommended Category "Preferred Applications" refers to clinical benefits in most cases, better effects, and can be applied in most situations.

[2] APB = Atrial premature beats; VT = Ventricular tachycardia;

[3] Reference: Zhong Jingquan, Long Deyong, Ma Changsheng, et al. Chinese expert consensus on intracardiac echocardiography. Chinese Journal of Cardiac Pacing and Electrophysiology, 2022, 36(05):377-403.
